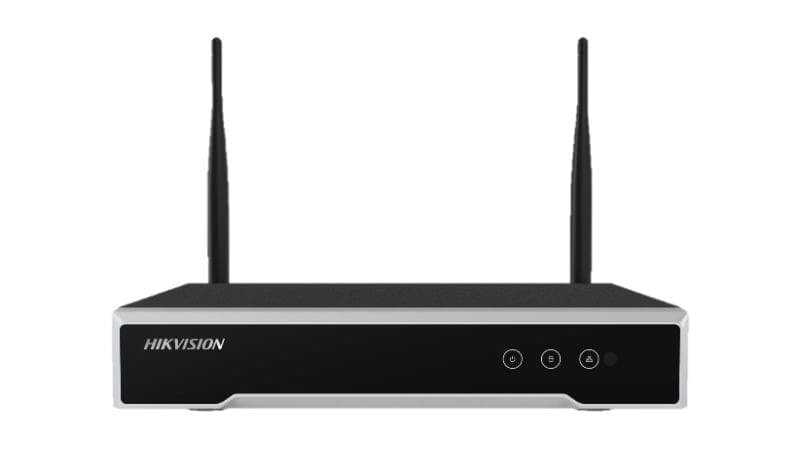

8-ch Mini 1U Wi-Fi NVR
BWP1.00
- Up to 8 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4 MP high-definition live view, storage and playback
- Up to 4-ch @ 1080P decoding capacity
- 1 HDD for continuous video recording
- Easy to install through automatic wireless connection
- Easy to manage through Hik-Connect app
- Video and Audio
- IP Video Input
8-ch
Up to 4 MP resolution
- Incoming Bandwidth50 Mbps
- Outgoing Bandwidth40 Mbps
- HDMI Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (linear, 1 KΩ)
- Decoding
- Decoding FormatH.265+/H.265/ H.264+/H.264
- Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Playback ModeNormal/Smart, Event, Tag, Eternal File
- Synchronous Playback8-ch
- Live View Window Division1/4/6/8/9
- Aux Port Window Division1/4/6/8/9
- Decoding Capability4-ch@1080p (25 fps), 4-ch@4 MP (12 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw, G.722, G.726, MP2L2
- Network
- Remote Connection16
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Wireless Parameter
- Frequency Band2.4 GHz
- Antenna Structure2 × 2MIMO
- Transmission Speed144 Mbps
- Transmission StandardIEEE 802.11b/g/n
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1.6 A
- Consumption≤ 10 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- ChassisMini 1U
- MaterialMetal box
- Dimension (W × D × H)265 × 246 × 48 mm (10.4" × 9.7" × 1.9")
- Weight≤ 1.6 kg (without HDD, 3.5 lb.)
- Certification
- Obtained CertificationCE, FCC
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
